24時間配送のバナーにある電動モーター。

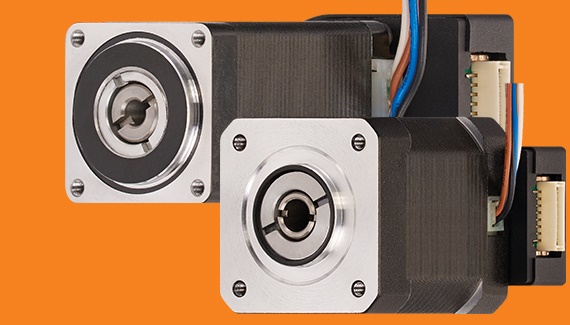

ドライリンE 電動モーター

最短24時間以内出荷可能

To the electric motors online shop

Automation with stepper motors, DC motors and EC/BLDC motors

For linear axes and handling systems, igus offers a wide range of electric motors. Hybrid stepper motors, DC motors and brushless DC motors find their applications in lead screw drives, toothed belts and rack and pinion drives. The electric motors complete the range of igus automation technology. In this way, entire handling systems can be configured in combination with linear axes.

軸と2つの接続端子があるロータリエンコーダー、背景切り抜き。

Stepper motors

  • Powerful in 5 sizes
  • Motors with metric connector or stranded wires
  • Safety with encoder and brake
  • With flattened motor shaft (D-Cut) for increased anti-rotation feature
Information on stepper motors
金属製ハウジングと突出した軸を備えたコンパクトな電動モーター。

DC motors

  • Also available with protective housing
  • Torques from 0.1 to 1.8Nm
  • Speeds up to 440rpm
  • With flattened motor shaft (D-Cut) for increased anti-rotation feature
Information on DC motors
MOT-EC-56-C-I-A-FRONTのサーボモーター。コネクタとケーブル接続付き。

EC/BLDC motors

  • With Hall and encoder
  • Sizes NEMA: 17, 23 and 34
  • Virtually wear-free
  • Very high speeds
  • More cost-effective than conventional servomotors
Information on EC/BLDC motors
フロントフランジとプラグ接続を備えたコンパクトなステッピングモーター。

Lead screw stepper motors

  • 3 sizes with holding torque 0.1-2Nm
  • 7 lead screw types with pitches from 0.8-50mm
  • Matching lead screw nuts available
  • Lead screw can be attached from both sides for stepper motor without encoder
Information on lead screw stepper motors
フランジと2つの接続部を備えた電動モーター。

Stepper motor with IP68 water protection

  • Installation size: NEMA23/flange dimension 56mm
  • Protection class - motor housing: IP68 (10m)
  • Holding torque: 1.30Nm
  • Rated current: 4.20A
  • Motor connection: Terminal box
To the online shop for stepper motors
金属製ハウジングと接続されたケーブル付きのコンパクトなギアモーター。

DC motor with worm gear

  • With spline
  • Space-saving & quiet
  • Torques from 0.75Nm to 2.00Nm
  • Speeds up to 350rpm
  • Position encoder included
DC motor in the online shop

ドライリンEモーターを選ぶ理由

納期はお問合せください

計画的な在庫管理

長寿命

耐用年数が長い製品

1個から配送、最小注文数なし。

最小注文数なし

100%テスト済み

ドライリンE 製品検索

モーターと歯車で、製品検索と専門家相談を示すアイコン。

電動モーター向け

エキスパートツールをご使用いただくと、お客様の作業内容に適したモーターを数クリックで見つけることができます。ご希望の使用条件を入力してください。

最適なモーターを見つける
駆動技術の歯車シンボル。

電動リニアドライブ向け

Assemble the right electric motor with our linear system quickly and easily in just a few steps.

最適なリニアドライブを見つける

送りねじ付きモーター向け

Find lead screw motors in just a few clicks: Simply enter your requirements and get matching results.

最適な送りねじ付きモーターを見つける

提供サービス

drylin E motor control systems

Travels, positions, speeds and operating times can be easily defined with the stepper motor dryve D1 via a control system that is based on a web interface. The D3 DC motor control system makes it possible to easily control guide carriages.

  • Quick initial operation
  • Simple and intuitive user interface
  • Compatible with industrial control systems
  • For all drylin linear axes
Information on motor control systems

drylin E sample programmes

Save costs and time with the sample programmes (sample codes) from igus

  • Download programmes with master/control programme & dryve parameterisation
  • Compatible with industrial manufacturers (Siemens, Beckhoff, Wago, etc.)
  • Compatible with common single-board computers/developer boards
    (Arduino, Rasperry Pi, Beaglebone)
サンプルプログラムへ

Application examples with igus motors

Positioning in the laser application laboratory

VONJAN Technology is a supplier, service provider and solution consultant for laser system manufacturers. In the in-house application laboratory, the positioning of the laser components must be set to an accuracy of 1/10 of a millimetre, depending on the application test. A drylin lead screw linear module with stepper motor and a control system from igus ensure the required accuracy and rigidity.

使用事例へ
drylin の位置決めシステムが、精密ベアリング付き測定ヘッドの下にある。

XXL X-ray scanner

Whether cracks, fractures, inclusions, deformations or foreign objects: The Rex-Cell X-ray scanners and tomography systems from Flow Capture Germany GmbH can be used to find the smallest defects in components. When it comes to drive technology, the company relies on products from igus.

使用事例へ
試験室内の製品品質管理用X線装置。

Motorised mirror ceiling consisting of 120 mirrors

The TWAXIS mirror installation was developed by MACHINESHOP to create a unique decoration for the advanced cruise fleet of MSC Cruises. An extraordinary, motorised mirrored ceiling was created, which can be admired by passengers to a height of three storeys.

使用事例へ
鏡面天井と青い照明のある現代的な展示空間。

Smooth movement in the sensor test bench

The company Hoffmann + Krippner manufactures highly specialised input systems, printed electronic components and components for the Internet of Things. To ensure that customers in a wide range of industries always receive the best quality, the products undergo in-house quality testing.

使用事例へ
マイクロエレクトロニクスの試験台。センサー試験ヘッド、drylin ZLW、igusのe-chainを搭載。

Further application examples

Here you will find many more application examples from our customers from all industries. Discover the applications in which the drive technology products from igus have already been used.

使用事例へ
建設機械、風力タービン、製造設備向けの産業用すべり軸受。

関連情報

フランジと軸付きのigus減速機2台。

ドライリンE モーターギヤボックス

The motor gearboxes of the drylin E series are characterised by their low backlash, quiet running, high drive torques and an efficiency of 96%.

  • Planetary gearbox for igus stepper motors NEMA 23 and 34
  • Increased motor torque
  • Higher holding torque of a brake
  • Two installation sizes
  • Reduction ratios of 3 & 5 available
To the online shop for motor gearboxes
白い背景にある、軸継手の2つの半分です。

ドライリンE ジョーカップリング

The coupling connects the drive pin of the axle and the motor pin. An elastic plastic element in the centre of the coupling transmits the motor torque. Both radial and axial clearance are equalised by this dampening element.

  • With square or round housing
  • 20 versions in stock
  • Vibration-dampening & pluggable
  • Temperature range from -30°C to +100°C
カップリングのオンラインショップへ
drylin E NDR-240-48のMean Well製電源で、青い前面ラベルと金属製ケースです。

ドライリンE スイッチング電源ユニット

Our switch-mode power supply units offer an optimum solution for supplying power to numerous electronic applications. Thanks to standardised installation in control cabinets on TS35 DIN rails or top-hat rails, you not only save space, but also valuable time.

  • 8 versions in the online shop
  • Rated power from 75 - 960W
  • Ready to ship in 24h
  • Suitable for igus motor controls
電源装置のオンラインショップへ
motekのケーブルコレクション。4本のモーターケーブルと異なるコネクタ。

drylin E motor cables

The right connection cable for every motor! In our online shop you will find cables for stepper, EC/BLDC and DC motors. The individual cables are categorised into motor cables, angular encoder cables and brake cables.

  • Lengths of 3m, 5m, 10m or 20m
  • Various outer materials
  • Straight and angled connectors
  • Available from stock
To the online shop for motor cables
