Save costs and improve processes!
Set sail with sophisticated, maintenance-free igus® products …

Lubricant- and maintenance-free products for the shipbuilding industry

The construction of increasingly larger ships poses high demands on the production processes in any wharf. igus® products display their strengths in ship construction and processing and also in many other overall shipbuilding applications: They provide safe energy supply systems for indoor cranes, welding and cutting facilities, material testing instruments, robots und transporters, etc.

Optimize the service life of your facilities and at the same time reduce the process costs with igus® high-performance polymer products. igus® products are suited for applications in almost all environments: Heat, cold, damp, dirt – we always have a solution.

An overview of the highlights:

Maintenance- and lubrication-free, predictable service life

Resistant against corrosion, salt water, chemicals and UV radiation

Suitable for use in extreme temperatures

Easy installation, flexible and modular

Products

For use in the shipbuilding and offshore industry

energy chains and chain-friendly cables - universal use







energy chains supply energy, data and signals and are continuously in motion. We offer you all components - e-chains®, special cables, plug connectors, accessories - individually or as complete system.

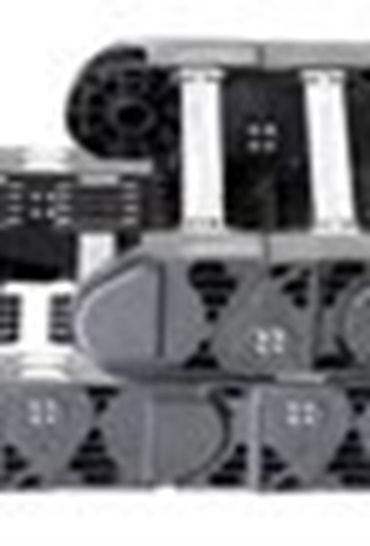

Energy-efficient roller chain profile
Roller chain profile, energy-efficient

Quiet, abrasion-resistant and maintenance-free

For long travel distances of 600 m and more

Very high fill weights and speeds

E4.1 製品一覧

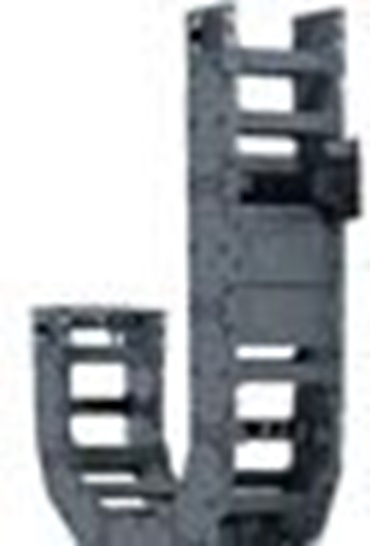

Universal energy chain

Almost all applications possible

Inner heights from
21 to 80 mm.

Can be opened from both sides

Quick installation, cable-friendly design

600V複合ケーブル製品一覧

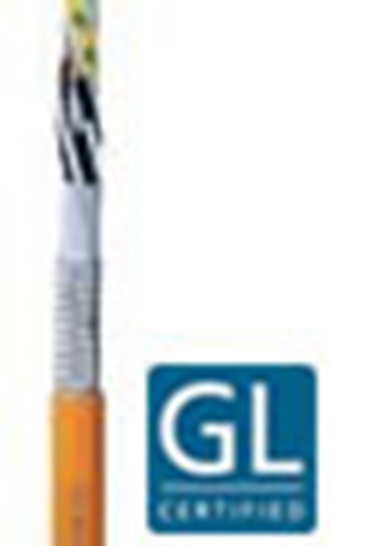

Servo cables

Bending radii from 7,5xd

Entire shield with optimum braid angle

Jacket materials: PVC or PUR

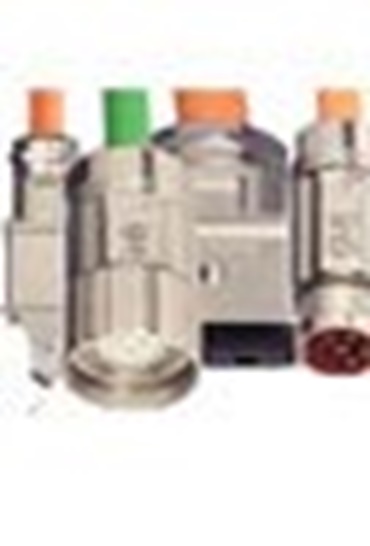

ハーネス済モータケーブル製品一覧
Systems for drive technology

Assembled power, servo, encoder, signal and motor cables

According to manufacturer's
standards, e.g. Siemens, Lenze, SEW, Fanuc, etc.

Bending radii from 7,5xd

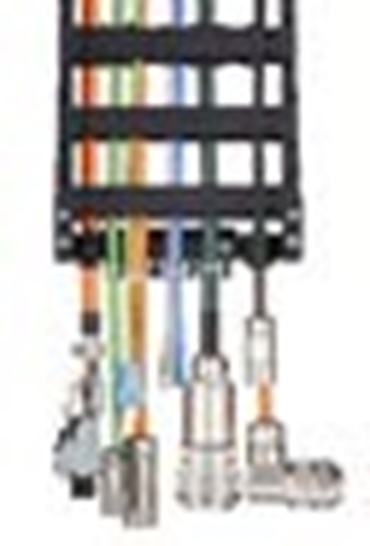

レディーチェーン - カスタムメイドのケーブルユニット
Preassembled complete systems with all components

Increase cash-flow

Keep capacities flexible

Shorten processing times

Avoid machine
downtimes

Reduce storage costs to zero

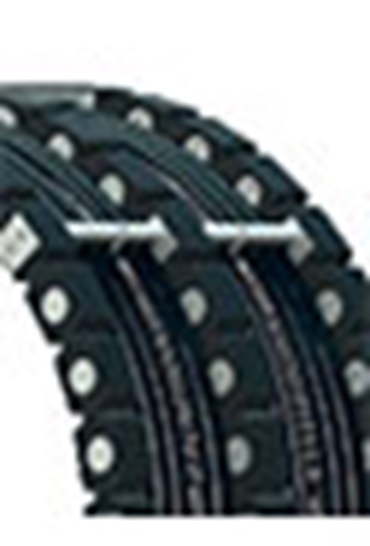

Energy chain specifically for use in offshore applications
Energy chain for use in offshore applications

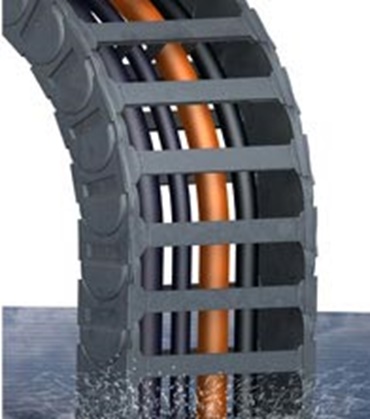

Heavy-duty energy supply specifically for use on the ocean floor.

iglidur® high-performance polymer bearings

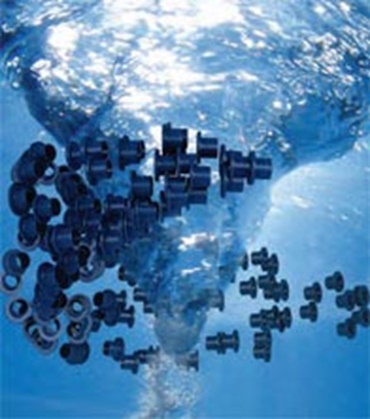

Maintenance-free polymer plain bearings suitable for underwater use




Maintenance-free

Lubricant-free

Corrosion resistance

Extremely insensitive to dirt

High accuracy grade

High compressive strengths

Low thermal relaxation

Good heat conductivity

Very low creeping tendency

High mechanical dampening





Product selection for the shipbuilding industry

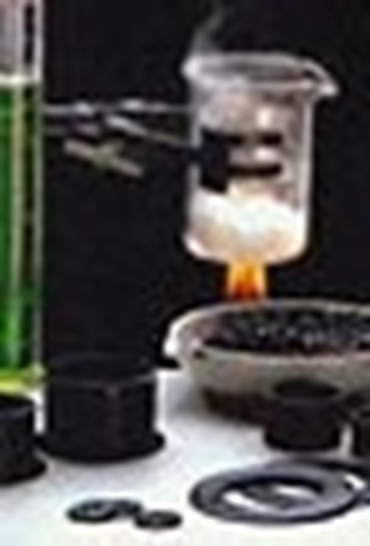

iglidur® X
The high-tech troubleshooter

Very high resistance
against chemicals

Very low humidity
absorption

Operating temperatures from -100°C to + 250°C in continuous operation

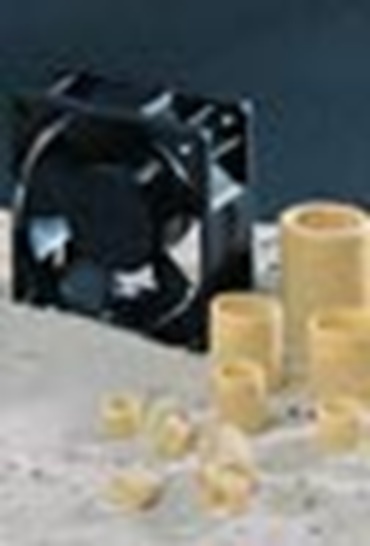

iglidur® J
The fast-and-slow motion specialist

High resistance
against chemicals

Low humidity
absorption

vibration dampening

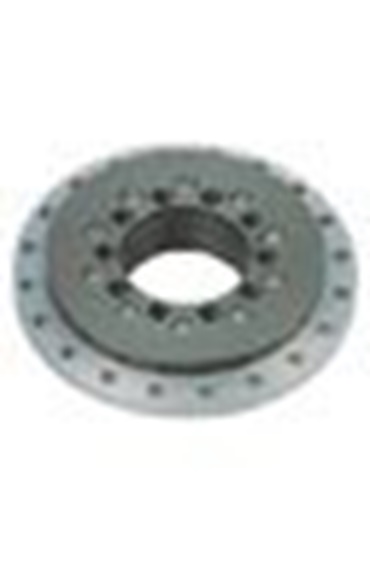

Polymer slewing ring bearings

Ready-to-install, rugged, corrosion-resistant bearing unit for high loads

For extreme overturning torques

Application in alternating ambient media possible

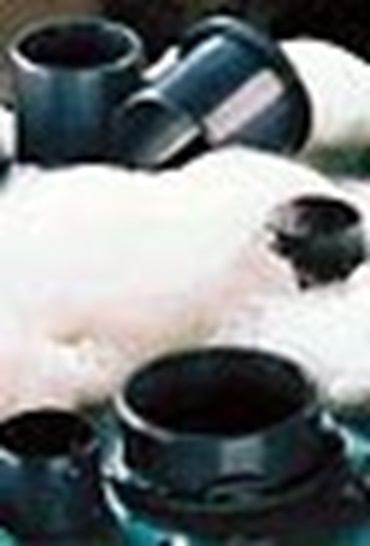

iglidur® H
For wet areas

Usable underwater

For high temperatures

Chemical resistant

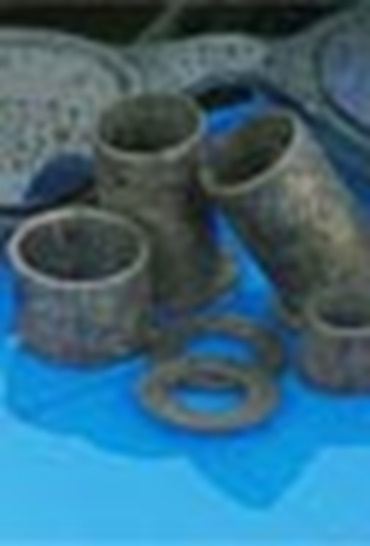

iglidur® UW
Underwater bearings

For underwater applications

For fast and continuous rotations

High holding times

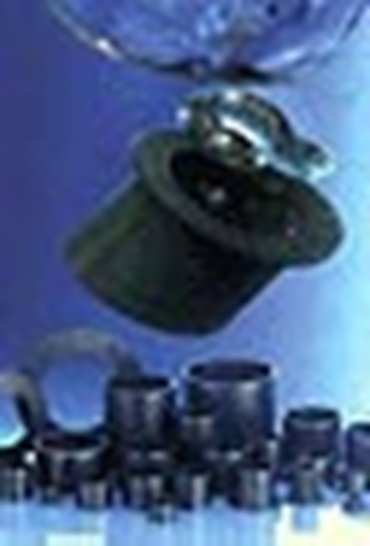

iglidur® UW500
Underwater bearings

For underwater application at high temperatures

For fast and continuous movements

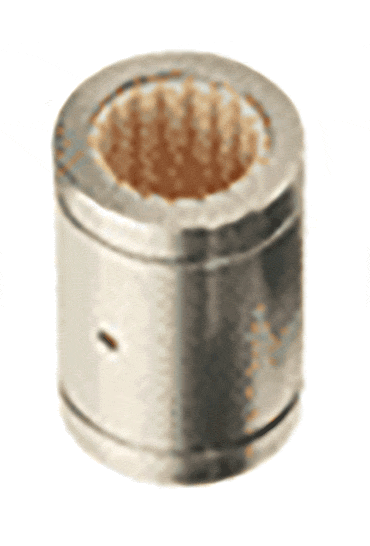

drylin® - Maintenance- and lubricant-free linear plain bearings






Maintenance-free

Self-lubricating

Resistant to dirt, dust and humidity

Weight reduction

Very quiet run

wear-resistant

Corrossion-resistant

Insensitive to impacts and vibrations

Low coefficients of friction

High static load capacity

High speeds and accelerations possible

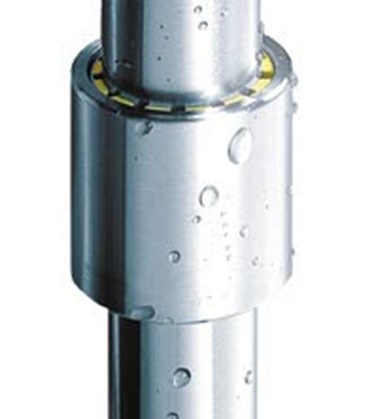

ドライリン ステンレス製リニアガイド
Stainless steel linear technology

Linear bearings and guides, spindle linear units made of VA material for the highest resistance in all media.

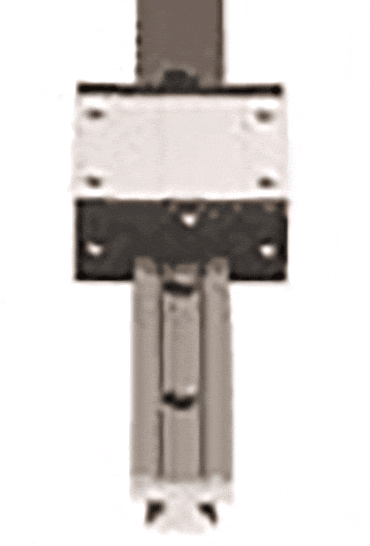

リニアガイド:ドライリンT
linear guide systems

Rugged linear guide for use in a wide range of (including extreme) environments. Corrosion-free, wear-resistant, low coefficient of friction.

Application examples

From the shipbuilding and offshore sector

造船所

樹脂製エナジーチェーンを取り付けた8台のガントリークレーンは合計180mを走行しています。

造船所

水中掘削機

このVibrocorer VKG-6ドリルは、極めて厳しい条件下で使用されています。 a

水中掘削機

港湾荷役機械

2000年の稼動以来、エナジーチェーンおよびケーブルには、まだ一度もトラブルが発生していません。

港湾荷役機械

ヨットの太陽エネルギー

外的影響を避けるために、ソーラーモジュールのケーブル接続にはE2マイクロエナジーチェーンを使用しています

ヨットの太陽エネルギー

Helicopter hangar for ships

Telescope type deploying and retracting of a hangar at sea.

Helicopter hangar for ships
